Banks Ram-Air Transmission Pan - 2007.5-2024 Ram 6.7L Cummins
Product details

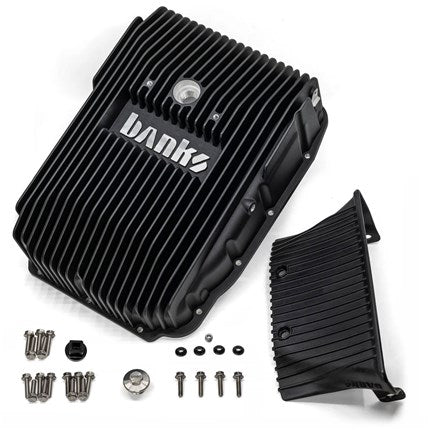

Banks Ram-Air Transmission Pan - 2007.5-2024 Ram 6.7L Cummins
The Banks Ram-Air transmission pan is engineered to actively reject heat from the 68RFE by combining added fluid capacity with a forward-facing Ram-Air scoop and aligned internal/external FlowThru fins. The design adds approximately three quarts of fluid capacity while directing moving air beneath the truck across the casting.
The die-cast A380 aluminum pan includes 20 internal heat-absorption fins, 22 external radiator fins, a magnetic drain plug and an auxiliary temperature-sensor port. The front scoop is intentionally breakaway so an impact can sacrifice the scoop rather than the aluminum pan.
Key Features
- Adds approximately 3 quarts of transmission-fluid capacity
- Ram-Air scoop directs ambient air through cooling fins
- 20 internal heat-absorption fins
- 22 external radiator fins
- FlowThru Fin heat-transfer design
- 1/8-inch NPT auxiliary temperature-sensor port
- Ferrite magnetic drain plug
- Die-cast A380 aluminum with CNC-machined surfaces
- Breakaway scoop design
Specifications
- External heat-radiation surface area: 922 sq in
- Internal heat-absorption surface area: 695 sq in
Fitment
2007.5-2024 Ram 2500/3500 with 6.7L Cummins and 68RFE; applicable Ram 4500/5500 years are also listed by Banks.
Product Information
- Manufacturer: Banks
- Manufacturer Part #: 35170-B
