BD Diesel TowMaster 68RFE Transmission - 2019-2022 Ram 6.7L Cummins
Product details

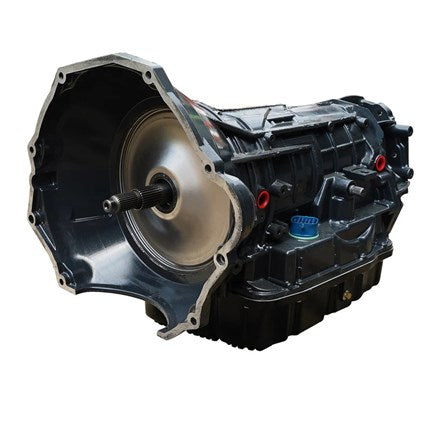

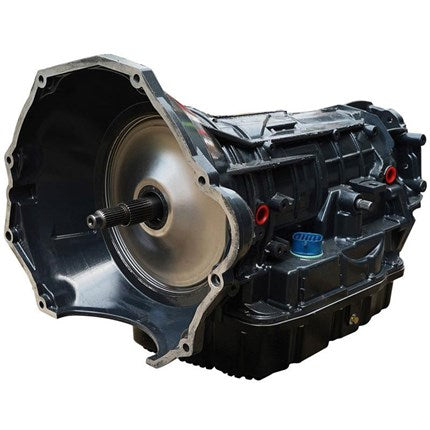

BD Diesel TowMaster 68RFE Transmission - 2019-2022 Ram 6.7L Cummins
BD Diesel's TowMaster 68RFE is a reinforced replacement transmission for 2019-2022 Ram 6.7L Cummins 4WD trucks. It addresses common clutch and hydraulic failures with increased clutch capacity, reinforced pressure plates, an upgraded valve body and a longer overdrive shaft.
The build uses custom QT100 pressure plates to reduce clutch-drum deflection, a Big Stack overdrive shaft and a deep-sump pan for added fluid and cooling capacity. BD also upgrades the low/reverse one-way clutch, 4C spring retainer and 2C piston area for towing loads.
Key Features
- Hard-anodized valve body with new solenoid pack
- Bonded-gasket separator plate reduces cross leaks
- Heavy-duty cam-and-roller low/reverse one-way clutch
- Billet 4C spring retainer
- Steel girdle added to 2C piston
- QT100 pressure plates
- 33% increase in overdrive and 2C clutch capacity
- Custom Big Stack overdrive shaft
- Reinforced accumulator plate
- BD deep-sump pan
Important Notes
- Special tuning is required on 2019-up applications to command increased line pressure. Line-pressure controller is not included.
- Verify torque-converter and calibration requirements before ordering.
Fitment
2019-2022 Ram 2500/3500 4WD with 6.7L Cummins and 68RFE.
Product Information
- Manufacturer: BD Diesel
- Manufacturer Part #: 1064294
How do I verify fitment?
Match the product fitment information to your exact year, make, model, engine, drivetrain and configuration. If anything is unclear, email sales@hilltopdieselperformance.com before ordering.
Where can I find shipping and return information?
Policy links are available in the site footer and checkout. Product-specific restrictions or core requirements are shown in the product description when applicable.
