Mishimoto Aluminum Transmission Pan - 68RFE - 2007.5-2023 Ram 6.7L Cummins

Mishimoto Aluminum Transmission Pan - 68RFE - 2007.5-2023 Ram 6.7L Cummins

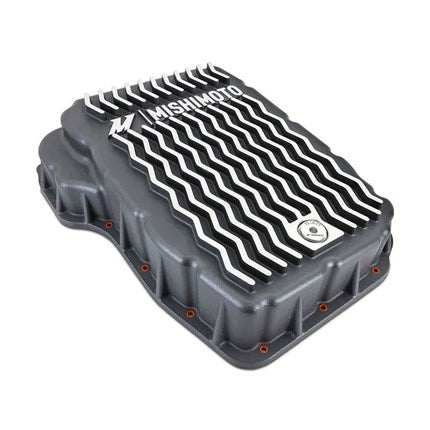

Mishimoto's cast-aluminum 68RFE pan is a direct-fit cooling and service upgrade for 2007.5-2023 Ram 6.7L Cummins trucks. The gunmetal-gray casting adds 2.6 quarts of fluid capacity and uses external ribs plus internal baffles to improve heat dissipation and reduce fluid slosh.

The pan adds service features missing from the factory stamped-steel unit, including a magnetic drain plug, a 1/8-inch NPT temperature-sensor port and pre-installed bolt retainers. Its sealing rail is precision machined for a factory-style gasket or approved sealant.

Key Features

• Cast-aluminum construction
• Adds 2.6 quarts of ATF capacity
• Internal baffles reduce fluid slosh
• Cooling ribs increase heat dissipation
• Magnetic drain plug
• 1/8-inch NPT temperature-sensor port
• Bolt retainers simplify installation
• Precision-machined sealing surface

What's Included

• Cast-aluminum transmission pan
• Magnetic drain plug
• 15 silicone bolt retainers
• 15 socket-head cap screws with washers
• 1/8-inch NPT plug

Specifications

• Drain-plug torque: 15 lb-ft
• Added pan capacity: 2.6 qt

Important Notes

• Pan gasket is not included. Mishimoto recommends OEM gasket 68425659AA.

Fitment

2007.5-2023 Dodge/Ram 2500 and 3500 with 6.7L Cummins and 68RFE transmission.

Product Information

• Manufacturer: Mishimoto
• Manufacturer Part #: MMTP-RAM-07

Manufacturer Warranty / Compliance

• Mishimoto Lifetime Warranty.
