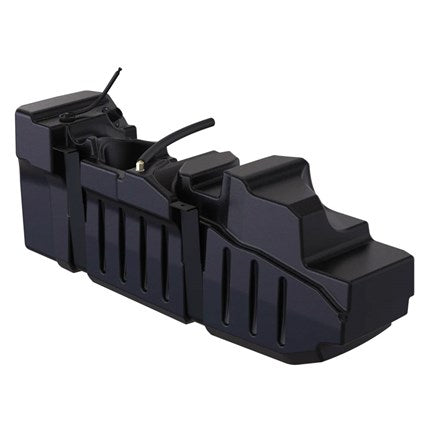

S&B 50 Gallon High-Capacity Fuel Tank - 2005-2026 Ram Cummins CCSB
Product details
S&B 50 Gallon High-Capacity Fuel Tank - 2005-2026 Ram Cummins CCSB
S&B's 10-1035 high-capacity replacement tank increases fuel capacity to approximately 50 gallons on compatible 2005-2026 Ram Cummins Crew/Quad Cab Short Bed trucks, replacing the factory 31-gallon tank.
The tank uses otherwise-unused underbody space to add approximately 19 gallons of capacity and is constructed from thick cross-linked high-density polyethylene for impact resistance.
Key Features
- Approximately 50-gallon capacity
- Replaces factory 31-gallon tank
- About 68% more fuel capacity than stock
- 1/4-inch cross-linked high-density polyethylene construction
- Compatible with high-flow diesel fuel pumps
- OEM sending unit is reused
- Mounting straps included
- Street legal in all U.S. states per current supplier specifications
Important Notes
- Fuel gauge remains functional, but Distance-to-Empty cannot be recalibrated to the larger capacity on these applications.
- Because the replacement tank is taller, the fuel gauge may remain on Full for the first 8-10 gallons.
- Supplier specification lists approximately 2-3 inches less ground clearance than the OE tank and no compatibility with the OE skid plate.
Fitment
2005-2026 Ram 2500/3500 Cummins Crew Cab or Quad Cab Short Bed applications.
Product Information
- Manufacturer: S&B Tanks
- Manufacturer Part #: 10-1035
